How to assemble

KittaParts is a threaded dowel system. Shelves stack between lengths of dowel, and the same handful of parts builds almost any configuration you like. Your unit will have its own mix of shelf sizes and dowel lengths, but the method below is the same every time.

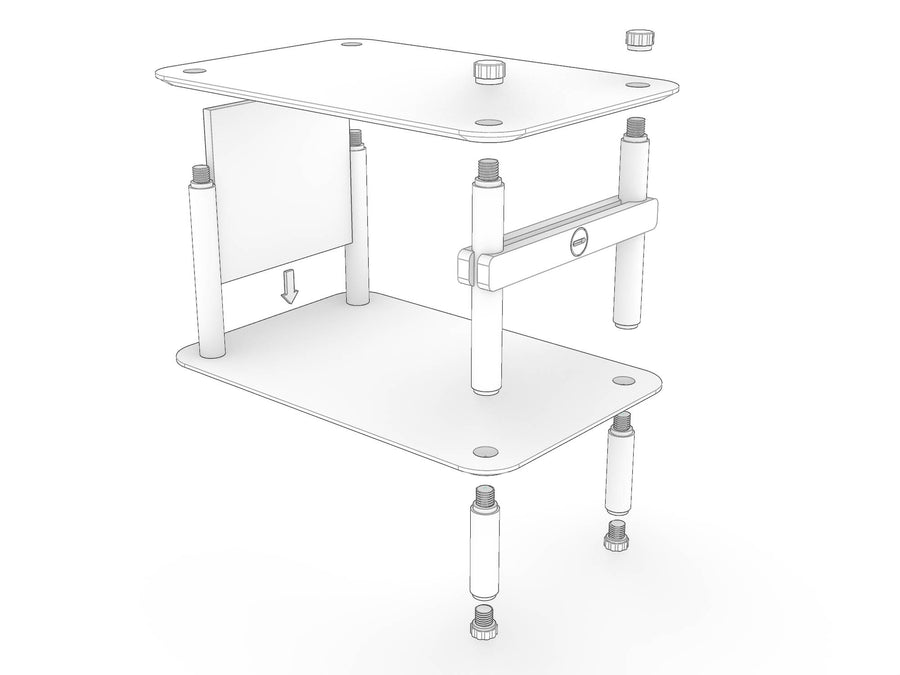

Exploded view of a KittaParts unit showing threaded dowels, shelves, adjustable feet and caps

How the system works

Every unit is built from threaded dowels, shelves with a hole at each corner, adjustable feet at the bottom and caps on top. Dowels thread into each other through the shelf holes, so each shelf is locked between the dowel below it and the dowel above.

Work upwards, one layer at a time, and add panels for doors and drawers as you go.

An adjustable foot threading into the end of a KittaParts dowel to make a leg

1. Start with a foot and a dowel

Thread a short dowel into an adjustable foot. That pairing becomes one leg, and you'll need one for each hole in your bottom shelf.

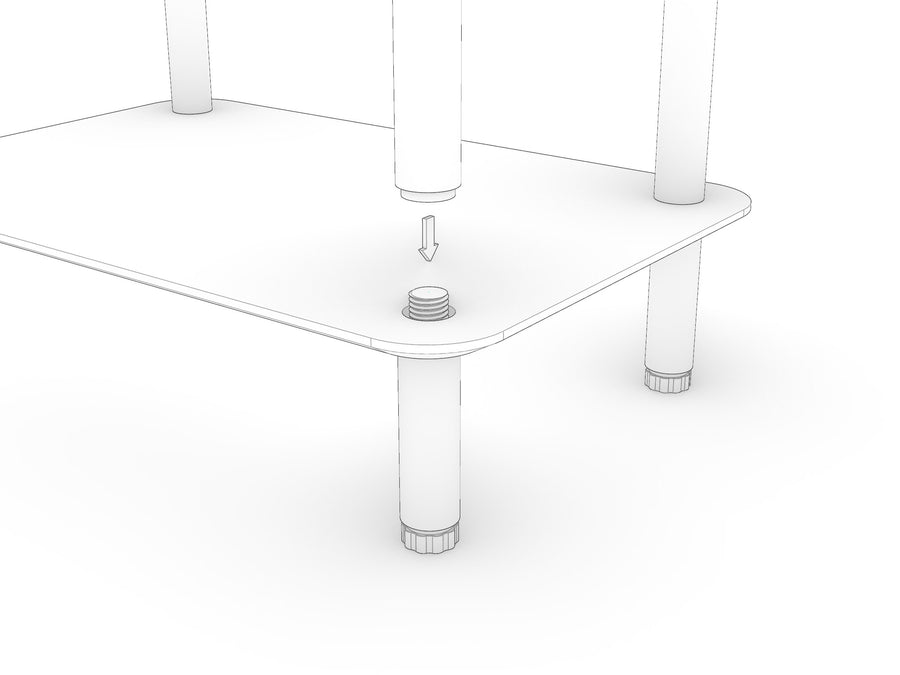

A KittaParts shelf sitting on its legs with a dowel threading down through a corner hole

2. Add your first shelf

Sit your bottom shelf onto the legs so each dowel comes up through a corner hole, then thread the next dowel down onto it from above to capture the shelf.

This first layer is the fiddly one. Once the bottom shelf is locked in with its legs and first set of dowels, it firms up and you're on your way.

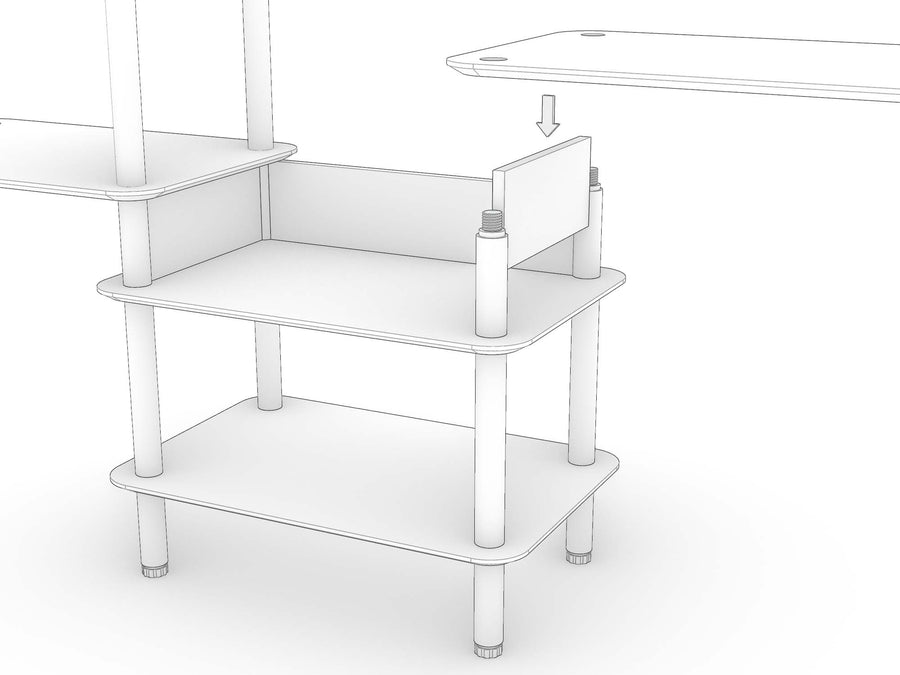

A part built KittaParts unit with a panel dropping in between the dowels and the next shelf above

3. Keep stacking

Carry on the same way for every layer: shelf on, dowels threaded in from above, next shelf on top of those.

Remember to add panels for doors and drawers as you go.

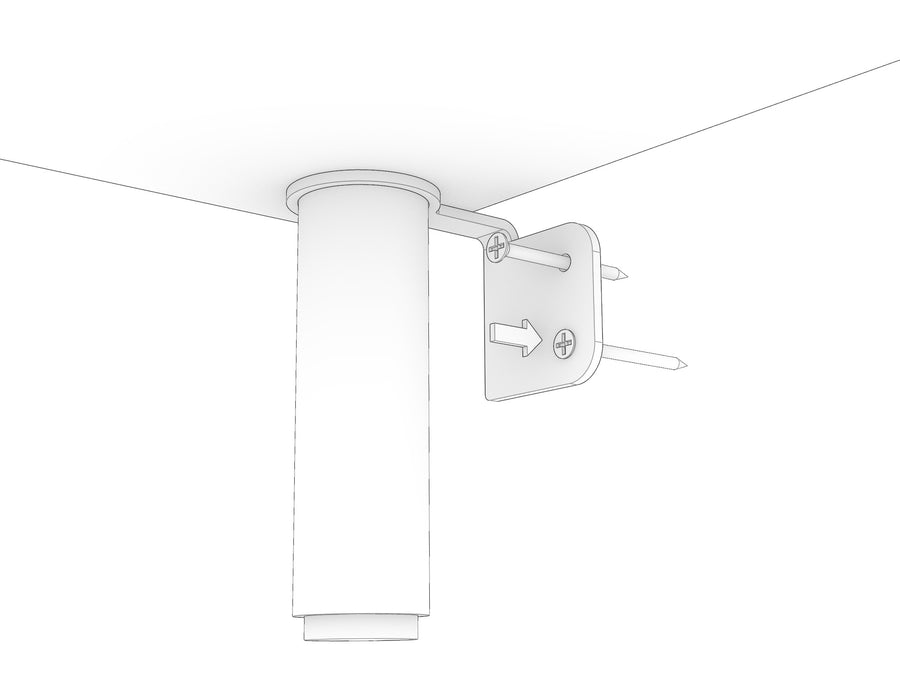

The KittaParts safety bracket fitted under a shelf with two screws going back into the wall

4. Fit the safety bracket

Before your final shelf goes on, fit the safety bracket. It slips over the last dowel and screws back to the wall, and it's a safety requirement that you use it. See the safety bracket guide for the detail.

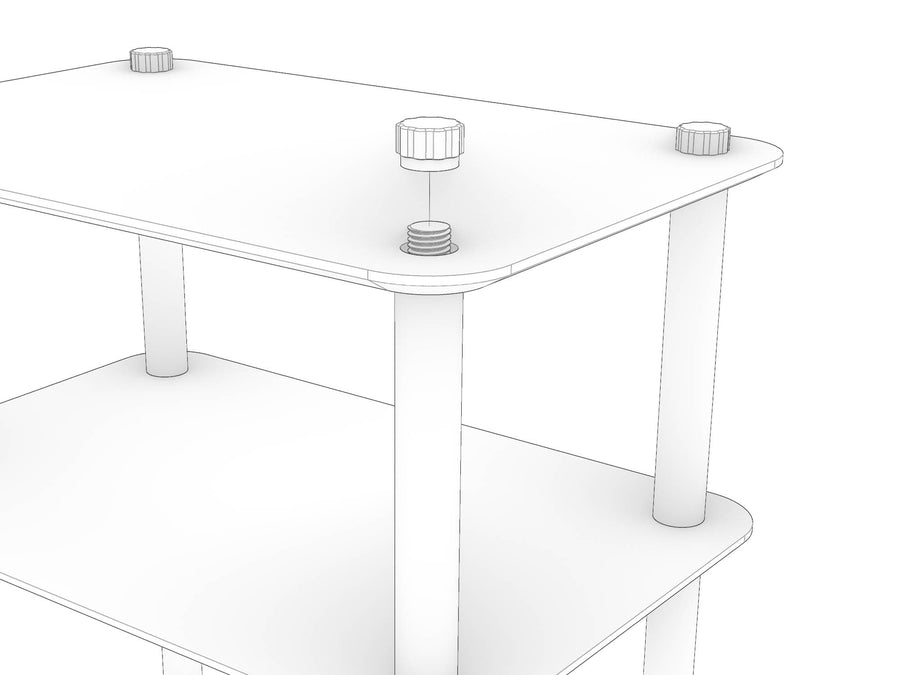

Caps threading onto the dowels at the top of a KittaParts unit

5. Finish with caps

Thread a cap onto each of the dowels to top out your unit.

If your unit has blind threads for a flush top, the logic reverses and it's built upside down from the top shelf. See the blind threads guide.

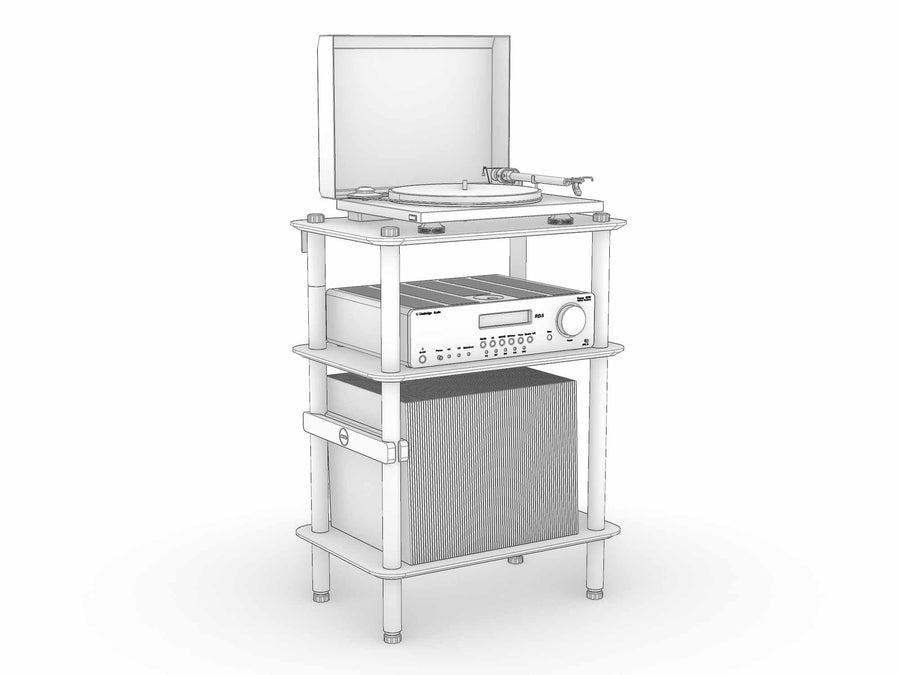

A finished KittaParts unit holding a turntable, amplifier and a row of records

6. Enjoy your KittaParts

Stand it where you want it and level it up on the adjustable feet.

We love seeing photos of finished units loaded up, so send one through with the Message Jem button below, or share it to your stories and tag us at @likebutter.au.

Need help?

As always, we're here to help if you run into difficulty putting your product together, or caring for it.

New mandatory standards require all furniture makers to include the following information on their products. Please get in touch if you have any questions!

Safety Alert Symbol Child Climbing Pictogram

WARNING

  • Children have died from furniture tip-overs.
  • Always secure this furniture with an anchor device if it is taller than 686mm.
  • Never allow children to stand, climb or hang on drawers, doors, or shelves.
  • Never open more than one drawer at a time.
  • Place heavy items down low.
  • If this unit is to be used as a clothing storage unit, bookcase, or shelving unit, never put a television on this furniture.
  • If this unit is to be used as an entertainment unit with a television, always secure your television with an anchor device.
  • If this furniture can be reconfigured after purchase, reassess and secure accordingly whenever the layout changes.
